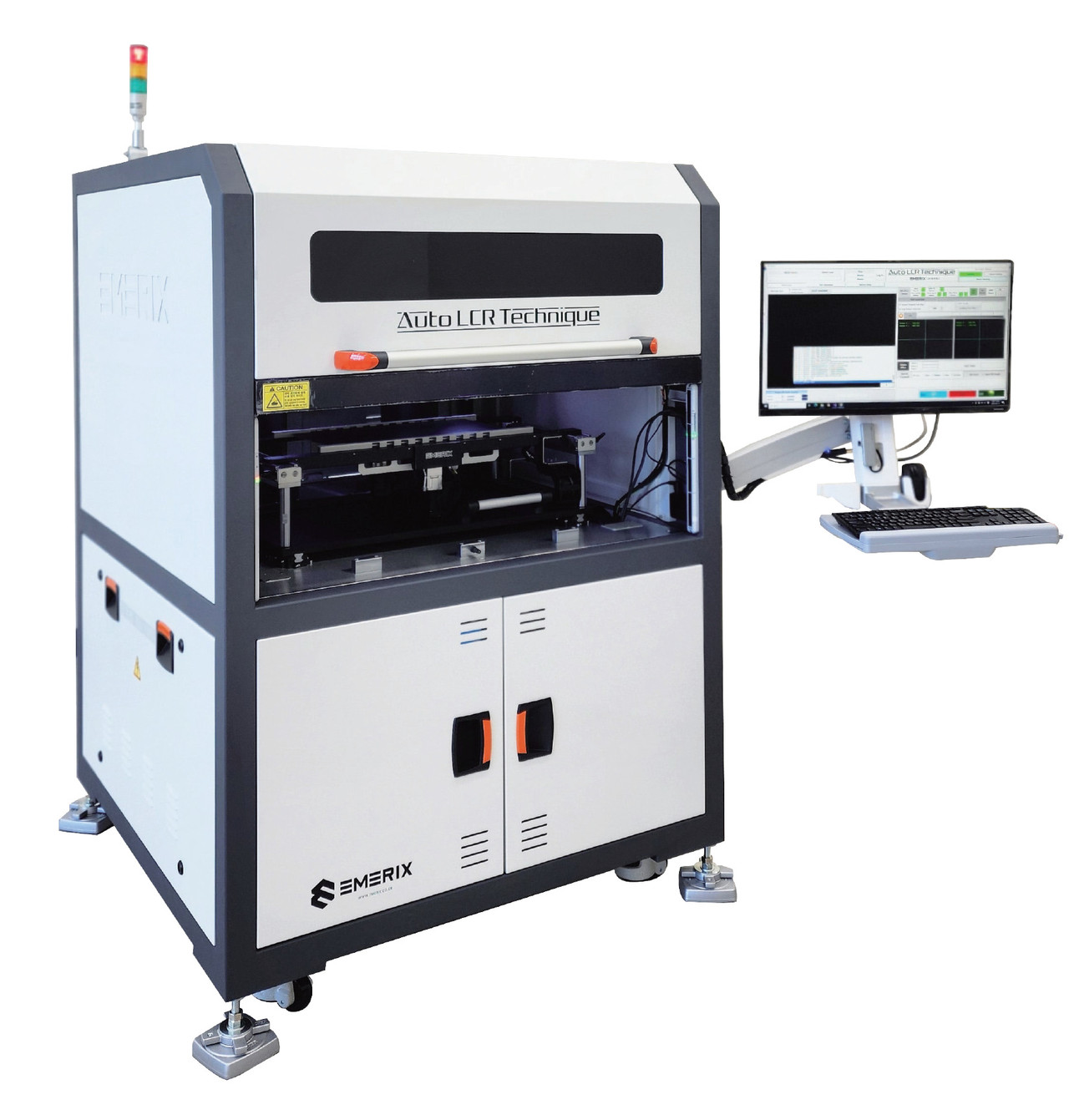

AUTO LCR TECHNIQUE

AUTO LCR TECHNIQUE (First Artical Inspection)

Auto LCR Technique is focused on first article inspection of double side tape application board of measuring value of L,R,C,D and location.

All process will run automatically therefore no human errors or measure in short time with extract accurate measurement value.

Prevent from mix component; insert location and reel change prevention.

AUTO LCR TECHNIQUE

AUTO LCR TECHNIQUE -

It is possible to inspect L, C, R (can be inspected as a diode option) for various first products such as PCBA with double-sided tape application and dummy board, and also measure PCBA with soldered finished products.


HIGHLIGHTS -

All inspections are performed automatically, and it is a device that can inspect devices of at least 0201/0603 size quickly and accurately without difficulty. In addition, if necessary, the user can directly measure and save data in real time through the LCR meter installed in the equipment, adding the convenience of manual inspection, enabling first-article inspection with more perfect results.

Auto Alignment
Library available
Retry Test
Optimized Route
Fail Visualize
Result with CSV and connect with MES
Speed Control
No Fixture or Jig Required
Program can generate within a 10 min
Optional for Diode Inspection is available
Auto Alignment
Library available
Retry Test
Optimized Route
Fail Visualizer
Result with CSV and connect with MES

Speed Control

No Fixture or Jig Required
Program can generate
within a 10 min		Optional for Diode
Inspection is available

[ Double Side tape PCB ]
